Enapter 的干燥機是一種溫度/壓力混合吸附系統，包括兩個裝有高吸附性材料的濾筒。它是免維護的。在操作期間，一個濾筒從電解機的氫氣流中吸收濕氣，而另一個濾筒被加熱并再生。該機架式干燥機可安裝在標準的 19 英寸機柜中。

參數

型號:DM2030

氫氣流速                                                                       Up to 2 Nm3/hr

氫氣輸出純度                                                                > 99.999%

                                                                                    (雜質 : < 1 ppm of any Hp/N/O/Ar/CO/C02)

干燥后氫氣露點                                                             -70 °C

操作功耗                                                                       375 W

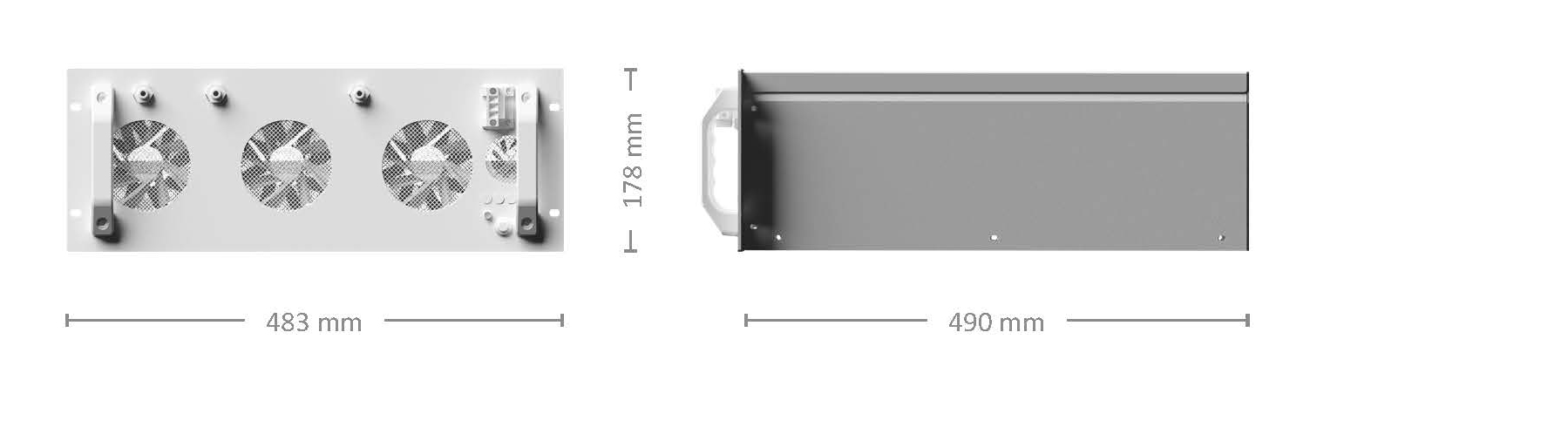

模塊尺寸                                                                       W x D x H in mm = 483 x 490 x 178 (4U)

維護                                                                              免維護

控制與監測                                                                    由 Enapter 能源管理系統全自動監控

可連接的電解設備數量                                                   4

標準電源                                                                       AC 200-240 V, 50/60 Hz

型號:DM1030

氫氣流速                                                                      Up to 1 Nm3/hr

氫氣輸出純度                                                                > 99.999%

                                                                                    (雜質 : < 1 ppm of any Hp/N/O/Ar/CO/C02)

干燥后氫氣露點                                                             -70 °C

操作功耗200 W

模塊尺寸                                                                       W x D x H in mm = 483 x 490 x 178 (4U)

維護                                                                              免維護

控制與監測                                                                    由 Enapter 能源管理系統全自動監控

可連接的電解設備數量                                                    2

標準電源                                                                        AC 200-240 V, 50/60 Hz
